# Grandstream HTXXX and GXW42XX
Grandstream ATA adapters provide a cost effective solution for integrating Analog technology such as Fax / Door Intercom systems etc into your PASCOM cloud phone system.
## Compatibility
| Model | Ports |
| --------- | ----- |
| HT802 | 2 |
| HT812 | 2 |
| HT814 | 4 |
| HT818 | 8 |
| GXW4216 | 16 |
| GXW4224 | 24 |
| GXW4232 | 32 |
| GXW4248 | 48 |
| GXW4216V2 | 16 |
| GXW4224V2 | 24 |
| GXW4232V2 | 32 |
| GXW4248V2 | 48 |
| HT801V2 | 1 |
| HT802V2 | 2 |
| HT812V2 | 2 |
| HT814V2 | 4 |
| HT818V2 | 8 |
## Provisioning
| Provisioning | Firmware Management |
| ------------ | ------------------- |
| Yes | No |
**Provisioning**: The gateway / adapter will be managed via the PASCOM cloud phone system.\
**Firmware Management**: Device firmware can not be actualized / updated via the PASCOM cloud phone system.
## Configuration
### 1. Connect Gateway
{% hint style="success" %}
If it is not a brand-new gateway, set it in every Fall back to **factory settings**. To do this at the gateway, switch to the admin interface of the gateway via your browser and perform a **Reset** there. For further information, please refer to the manufacturer's manual.
{% endhint %}
Connect the gateway to the network via the **WAN port (Is necessary, but not documented anywhere at Grandstream)**.
### 2. Get MAC Address
The MAC address is located on the back of the gateway. \*\*For Grandstream with two Ethernet interfaces, the MAC-address of the LAN interface must be used, although the device must be connected to the network via the WAN interface. \*\* Alternatively, surf to the gateway's admin web interface with your browser or use the user manual.
### 3. Create Gateway
Log in to your PBX and under **Gateways** > **Gatewaylist** add a new device of type **ATA Gateway: Grandstream**.
Select the **model** you have connected.
In the **Mac Address** field, enter the previously determined MAC address of the gateway.
Enter an individual description.
Finally, click on **Next and Create Gateway**.
### 4. Apply Jobs
After saving changes, the job box (above) shows a corresponding entry to use telephony settings. Start the job by a click on the **green check mark**.
### 5. Get Provisioning URL
Check the Gateway in the Gateway List and choose **Action** > **Provisioning URL**. Copy the **URL** to the clipboard.
### 6. Enter Provisioning URL at the Gateway
Go to the admin UI of the gateway and store the copied provisioning URL.
**Please note:** Remove the **"https\://"** from the provisioning URL after copying.
Save the changes and restart the gateway for provisioning. Alternatively, you can restart the gateway also manually remove the power briefly.
### 7. Creating a new device via SIP and assigning users
Choose under **Devices** > **Device List** > **Add** > the entry **Via Grandstream Gateway: Analog Device via SIP**. In the tab **Base Data** select the port on the Gateway to which the device should be connected. Then assign the device to a user via the **Assignment** tab.
### 8. Test Function
The easiest way to test the successful Setup is to call your own voice mailbox with **\*100**. You should then hear the announcement of your voicemail box.
{% hint style="success" %}
Problems with provisioning? Occasionally, 3CX's built-in auto-provisioning feature may block a setup on the PASCOM.
{% endhint %}
### Deactivate 3CX Auto Provisioning.
If the setup of the gateway on the PASCOM does not work, the auto-provisioning of 3CX may be activated. This can be disabled via the admin web interface of the gateway.

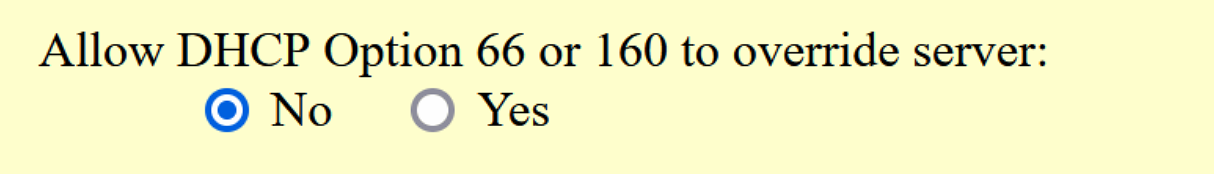

### DHCP Option 66
If your DHCP server has option 66 enabled, you must disable the **Override** on the Grandstream gateway.
---
